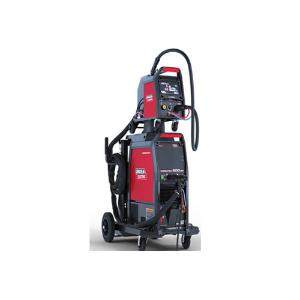

Multi-process Welding Machine Speedtec 500SP

Untuk Mengelas Logam
• GMAW • FCAW-G • FCAW-S • Pulsed MIG • GTAW • SMAW • CAG • MIG brazing Materials: • Steel • Stainless steel • Low alloy steel • Aluminium Applications: • General Fabrication • Heavy fabrication • Structural • Transportatin • Chemical processing • Maintenance and repair • Shipbuilding Fetures: This machine are the third generation multi-process power sources offering superior quality welding and high efficiency processes which increase the productivity and are the next step into the future of professional welding. This machine range designed with the latest energy-saving inverter technology and specially rugged construction are ready to work in even the most demanding environmental conditions. Modular system: power sources available in two versions 420A@100% and 500A@60% with a choice of separate wire feeders, standard LF52D for basic use or the advanced LF56D for more demanding applications, new cooler COOLARC® 60 with higher cooling efficiency, new 4-wheels cart with very solid metal made construction plus wide range of connection cable and accessories fits perfectly with the needs of the most demanding welding applications in various segments. Behind the outstanding welding performance, SPEEDTEC®’s platform based on digital communication system and with build-in communications tools, such as Ethernet or USB, allowing an accurate traceability and monitoring of your welding activities. Ultimate Performance *EXCELLENT PRODUCTIVITY • Speed Short Arc™ for faster welding with lower heat input. • High Penetration Speed™ for deep penetration welding. • Soft Silence Pulse™ reduces the noise and gives clearly better wetting for stainless steel. • MECHAPULSE™ produces very high quality welds with rippled seam appearance. • Production monitoring (Checkpoint). *RUGGED RELIABILITY • High duty cycle multi-process power sources. • Double-side fully potted PCB with superior resistance for dust, humidity, jerk or vibrations. • Metal made, rugged, solid and very stable construction ready for any industrial environment. • True Heavy Duty confirmed by 5 Years Warranty*. *SUPERIOR ERGONOMICS • Modular concept to build configuration for any requirements. • Ergonomics design make everyday welders work easier. • Innovative and intuitive user interfaces. • Wide range of options and accessories. High Efficiency Processes *Speed Short Arc™ (SSA™) A semi-controlled short circuit mode which allows to shift globular behavior using wire feed speed normally reachable only in pulse mode. The current values used in this mode are very different from those used in conventional “short arc” operation. Faster wire speeds require a medium current together with a large peak current in order to form and detach the droplet more quickly. – faster travel speeds* • Increases travel speed up to 50%** • Reduces heat input up to 20% • Reduces distortion • Improves out of position welds • Designed for Carbon & Stainless Steel, thin plates 2-5 mm *Soft Silent Pulse™ (SSP™) This is a pulse transfer with a special waveform producing a soft and silent arc. The behavior of the Soft Silent Pulse™ is very suitable for Stainless Steel application which requests the best wetting possible. Silence, because the noise of the arc is divided by two regarding a normal pulse mode what can be really appreciated when you have to weld in a confident area. Moreover the stability given by this transfer allows to weld in all positions and especially in vertical up without weaving when it is associated to a MECHAPulse™ welding mode. – improved arc sound* • Reduces arc noise up to 8 dB • Clearly better wetting for Stainless Steel • Reduces spatters level • Eliminates undercut effect • Efficient on Stainless Steel & Steel, all plate thicknesses *High Penetration Speed™ (HPS™) HPS™ (High Penetration Speed™) is a special spray mode but with a focused arc offering higher penetration and combining two different mainadvantages: provides lower voltage and so lower energy; very accurate and dynamic regulation of the welding parameters. This association is able to carry out very high productivity with the optimal welding performance. – increased penetration with faster travel speeds* • Increases penetration • Increases travel speed up to 35% • Reduces heat input up to 20% • Reduces distortion • Longer stick out applicable • Reduces undercut effect • Shorter preparation time • Designed for Carbon Steel, thick plates > 6 mm MECHAPULSE™ – GTAW appearance with GMAW Weld bead with TIG appearance prodctivity* • Increases travel speed (up 4x faster) • Reduces heat input and distortion • Elimintes in-line weaving • Shorter training time • Effortleess welding in vertical up position • Designed for Aluminum, Carbon & Stainless Steel, all thicknesses Innovative Intuitive Interface • Two controls, one button for easy navigation • Icon language for key commands • Easy process and settings selection • MECHAPULSE™ for obtaining high-quality scaled Weld bead • ARCFX™ – joint visualization • Work point in material thickness (mm) / WFS / A • Locking function / Limits / Memories / Jobs • Interface available in languages: English, German, French, Polish, Finnish, Spanish, Italian, Russian, Dutch, Romanian, Slovakian, Hungarian, Czech, Turkish, Portuguese What's Included: • Speedtec 500SP [K14259-1] • Hose Package, Water 5 M [K14199-PGW-5M] • Feeder LF56D [K14336-1] • Cart 4 wheels [K14298-1] • Gas flow meter kit [K14175-1] • Output connection kit [K14337-1] • LINC GUN LGS2 360 G - MIG gun air cooled [K10429-36-5M] • Roll kit 0.8/1.0VT F13 4 Rolls (Blue/Red) for solid [KP14150-V08/10] • Roll kit 1.2/1.6VT F13 4 Rolls (Orange/Yellow) for solid wire [KP14150-V12/16] • Roll kit 1.0/1.2AT F137 4 Rolls (Red/Orange) for aluminum wire [KP14150-U10/12A] • Roll kit 1.0/1.2RT F137 4 Rolls (-/Orange) for cored wire [KP14150-V10/12R] • Wire guide set blue 0.6 - 1.6 [0744-000-318R] Technical Specifications: *Power Sources [K14259-1] Primary voltage: 400V/3Ph 50/60Hz ± 15% Fuse size (A): 32 Max. input power (kVA): 25 "Rated output (A) at +40°C [100%]: 420 " Rated output (A) at +40°C [60%]: 500 Welding voltage range (V) [MIG/MAG]: 15-45 Welding voltage range (A) [MIG/MAG]: 20-500 Open circuit voltage (peak): 65 Vdc Temperature range [Operating]: -10°C to +40°C Temperature range [Storage]: -25°C to +55°C EMC class: A Weight (kg): 54,5 Dimensions W x L x D (mm): 625 x 295 x 550 Protection class: IP23 *Wire Feeders (LF 56D) Gun connection: Euro Wire feed mechanism: 4-rolls, All driven, single motor Feed rolls diameter (mm): 37, 2 WFS (m/min): 1,5-22 Filler wires diameter (mm) [Fe]: 0,8 to 1,6 Filler wires diameter (mm) [Ss]: 0,8 to 1,6 Filler wires diameter (mm) [Mc/Fc]: 0,9 to 1,6 Filler wires diameter (mm) [Al]: 1,0 to 1,6 Wire spool weight (max) (kg): 18 Wire spool diameter (max) (mm): 300 Maximum shielding gas pressure: 0,5 Mpa Temperature range [Operating]: -10°C to +40°C Temperature range [Storage]: -25°C to +55°C EMC class: A Weight (kg): 17,7 Dimensions W x L x D (mm): 302 x 642 x 516 Protection class: IP23 *Cart [K14298-1] Max. gas cylinder diameter (mm): 240 Max. gas cylinder height (mm): 1700 Front wheels diameter (mm): 125 Rear wheels diameter (mm): 250 Weight (kg): 36 Dimensions W x L x D (mm): 534 x 905 x 999 Other features: Low gas cylinder entry Rubber bumpers for feet protection 4 lifting eyes for easy transportation
