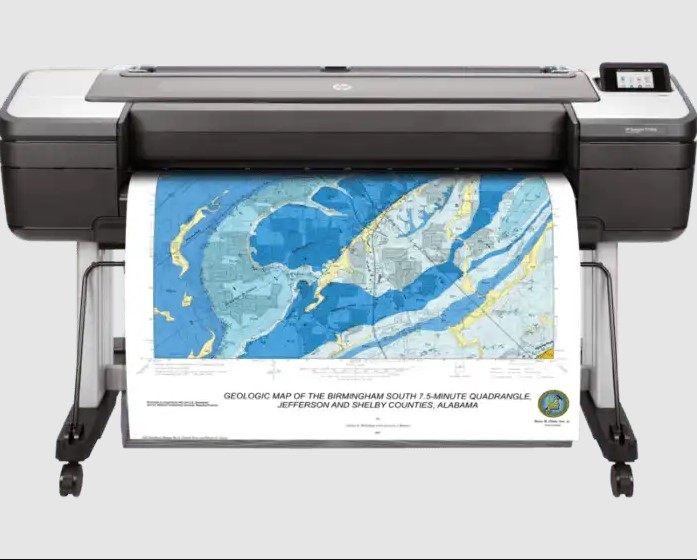

HP DesignJet T1700dr 44-in Printer

SKU : W6B56A

Harga : Call

Dapatkan harga terbaik Kami

HP DesignJet T1700dr 44-in Printer

Protect your printer and your data from external or unintended access with advanced security features. Simplify device and fleet management, including security management. Control and optimize printing costs with accounting solutions.

Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, encrypted hard disk, more.

Stay productive—with the Adobe PDF driver[2], you can handle even the most complex CAD/GIS files without freezing up your PC. Work uninterrupted with dual-roll capabilities. Easily print project sets and PDF documents with HP Click printing software.

Adobe PDF drivers[2] free up your computer immediately after sending to print—even for the most complex files.

For complex CAD/GIS files, precise colors enable better decisions. Six HP Bright Office Inks provide bright color, bold image quality, color/gray/photo black for soft colors, dark tones. Reproduce layers of data with the Adobe PDF Print Engine.[2]

Get bright color and bold image quality—even on plain papers—with HP Bright Office Inks.

Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.

A1 Black and White HP DesignJet Large Format Printer, Perfect for Enterprise
Print only
Print speed up to 116 A1 prints per hour
Ethernet, USB Type-A host port

PT. Central Plotter Indonesia menjual plotter hp ukuran plotter A1 sampai dengan plotter A0+, kami juga menyediakan dan menjual tinta plotter, kertas plotter dan service plotter

Print Specifications :

Print technology   HP Thermal Inkjet
Print languages   HP-GL/2, TIFF, JPEG, URF, CALS G4
Optional print languages   Adobe PostScript 3; Adobe PDF 1.7 ext 3
Model size   1118 mm
Guaranteed minimum line width   0.06 mm (ISO/IEC 13660:2001(E))[3]
Guaranteed minimum line width footnote   Measured on HP Matte Film
Theoretical minimum line width   0.02 mm (PDF addressable @ 1200 dpi)
Line accuracy   ±0.1%[2]
Line accuracy note   ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks
Print speed line drawing (economode, A1 plain paper)   116 pages per hour[1]
Print time black and white line drawing (draft, metric A1 plain paper)   33 sec/page
Print time line drawing (economode, A1 plain paper)   26 sec/page[1]
Maximum optical density (black)   2.15 maximum black optical density (6 L*min)
Print quality color (best)   Up to 2400 x 1200 optimized dpi
Maximum optical density footnote (black)   With HP Premium Instant Dry Photo Gloss media with Original HP inks
Non-printable area (cut-sheet)   3 x 17 x 3 x 3 mm
Non-printable area (roll media)   3 x 3 x 3 x 3 mm
Printer drivers included   Raster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver with optional PostScript/PDF Upgrade Kit
Internal Storage   500 GB self-encrypting
Memory   128 GB (virtual)[4]
Memory Note   Based on 4 GB DDR3 RAM

Connectivity and Communications :

Connectivity, standard   Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
Connectivity, optional   HP USB 3.0 to Gigabit LAN Adapter
Network ready   Standard
HP ePrint capability   Yes
Mobile printing capability   Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android

Power :

Power Consumption < 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Power Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max

Cartridges and Printheads :

Number of print cartridges   6 (cyan, magenta, yellow, photo black, matte black, gray)
Print cartridge volume delivered   Cyan, magenta, yellow, photo black, matte black, gray (300 ml); Cyan, magenta, yellow, photo black, matte black, gray (130 ml)
Print heads   3 universal printheads, 2 colors each
Print head nozzles   2112 each color
Ink drop   6 pl
Ink types   Dye-based (C, M, Y, PK, G); pigment-based (MK)

Supported Printing Media :

Finished output handling   Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter
Media types   Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
Media sizes supported   A4; A3; A2; A1; A0
Media sizes, custom   210 x 279 to 1118 x 1676 mm
Media sizes standard (metric rolls)   279 to 1118-mm
Media width, maximum   1118 mm
Media weight, recommended   60 to 328 g/m²
Media thickness   Up to 31.5 mil
Roll external diameter   135 mm
Roll maximum input   2
Roll maximum weight   11.9 kg
Recommended media   C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft);C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft);Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft);Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft)
Supported Primary Applications   Line drawings; Maps; Orthophotos; Presentations; Renderings

Environmental :

Operating temperature range   5 to 40ºC
Storage temperature range   -25 to 55ºC
Operating humidity range   20 to 80% RH
Non-Operating Humidity Range   0 to 90% RH
Acoustic power emissions   6.1 B(A)
Acoustic power emissions (standby)   5.0 B(A)
Acoustic power emissions (sleep)   < 3.1 B(A)
Acoustic pressure emissions   45 dB(A)
Acoustic pressure emissions (standby)   32 dB(A)
Acoustic pressure emissions (sleep)   < 15 dB(A)

Dimensions and Weight :

Dimensions without stand (W x D x H)   1802 x 695 x 998 mm
Package dimensions (W x D x H)   1955 x 770 x 710 mm
Weight   74 kg
Package weight   128 kg

Box Contents :

What's in the box HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
Software included HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS

Warranty :

Warranty 1 Year Limited Warranty (Next Business Day On-Site)

Certification and Compliance :

ENERGY STAR® certified   Yes
Electromagnetic Emission Standard   Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Environmental Certifications   ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver
Safety Approvals and Requirements   USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)

Other :

Web address for additional information   http://www.hp.com/go/designjett1700
Accessories   HP DesignJet 44-in Spindle Q6709A; HP HD Pro 42-in Scanner G6H51B; HP SD Pro 44-in Scanner G6H50B; HP DesignJet 3-in Core Adapter CN538A; HP USB 3.0 to Gigabit LAN Adapter N7P47AA; HP DesignJet PostScript/PDF Upgrade Kit C0C66B
Services (Care Pack)   U9QS9E HP 3 year Next Business Day plus Defective Media Retention Support;U9TQ2E HP 3 year 4-hour response, 9x5 plus Defective Media Retention Support;U9TQ8PE HP 1 year Post Warranty, Next Business Day plus Defective Media Retention Support;U9TR1PE HP 1 year Post Warranty, 4-hour response, 9x5 plus Defective Media Retention Support;H4518E HP Network Installation DesignJet High-end and Midrange Service;U1XV4E HP Preventive Maintenance Service
