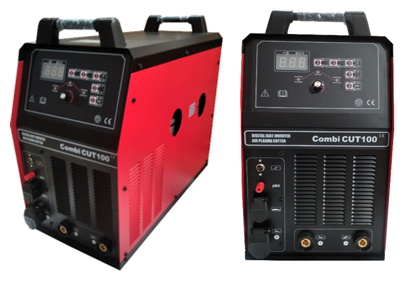

ATLANTIC Air Plasma Cutting Machine Combi CUT 100
SKU : CPI-ATL-COMBICUT100
Harga : Call
Pesan di
• Built in air compressor & gas regulator which makes the filed working much more convenient. • Microprocessor operation panel which brings much more simple and precise control and performance. • With 2T/4T and VRD function. • Narrow cutting seam, smooth appearance, less transmutation. • Auto-protection against over voltage and over heat. Specifications: • Input Power Voltage (V): AC 380 ± 15% ; 3 ph 50/60 HZ • Rated Input Power (kVA): 15.2 • Rated Input Current (A): 23 • No-load Voltage: 304 • Output Current Range (A): 20 –100 • Duty Cycle: 60 % • Arc Striking: Non-contact • Air Pressure: 0.4 MPa • Effective Cutting Thickness (mm): 25 • Max Cutting Thickness (mm): 40 • Weight (kg): 51.5 • Dimension (mm): 622 x 310 x 480 Accessories: • Plasma Torch 5 Mtr • Ground Clamp 300A + 2 Mtr Cable 25mm²
